Combo kit

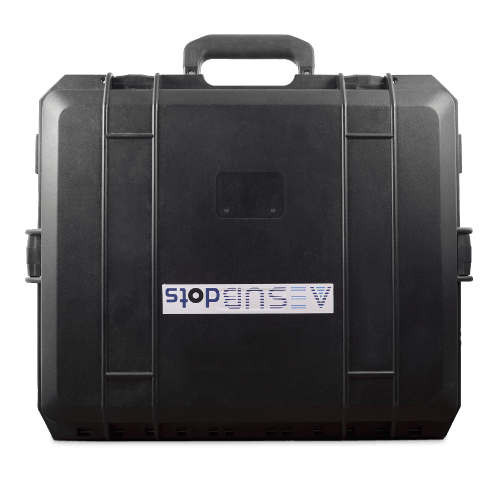

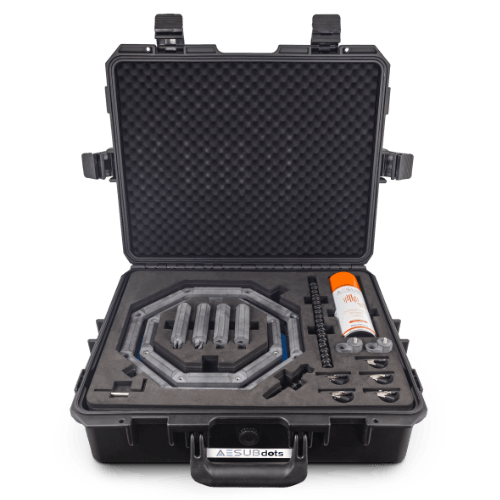

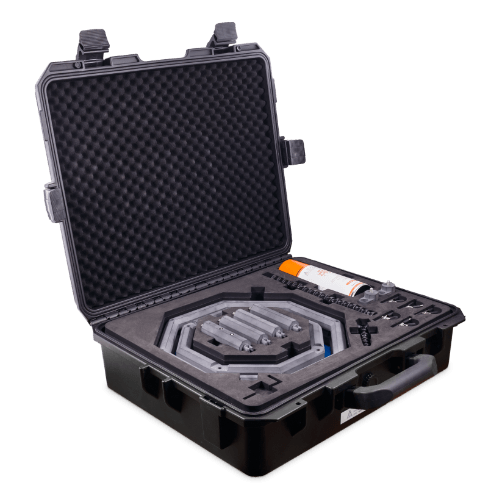

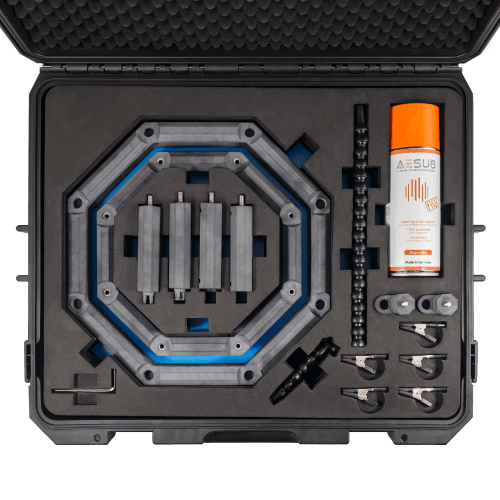

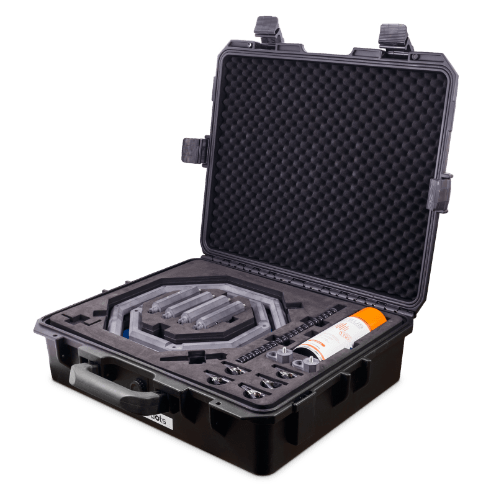

All elements packaged in one case
Aerospace Material
50% lighter than aluminum frames
Modular Design
Integrated plug-in and screw connections
Easily Expandable

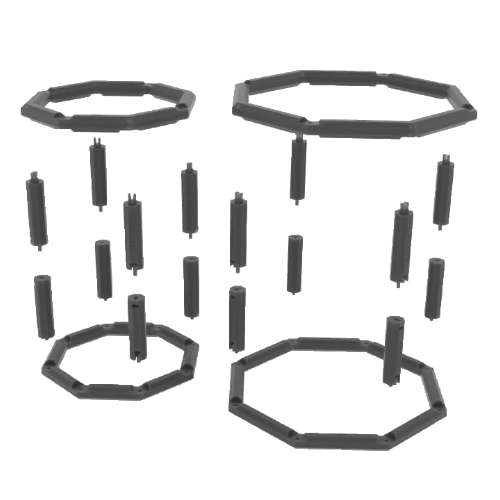

Both frames can be extended vertically
The AESUBframe Combo Kit can fit parts with diameters up to 250 mm in diameter, and with a height of up to 250 mm.
The AESUBframe Combo Kit comes with extension tubes that allow the frame to be extended from 100 mm to 300 mm.
The AESUBframes are manufactured through an additive process using a carbon fiber reinforced Ultem material, that is certified AM aerospace grade quality. The manufacturing process allows for the screw and plug-in connections to be directly integrated into the design, and can be assembled without any additional tools.
Metrology grade infrared + blue laser handheld scanner with built-in photogrammetry system
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: XS: Coins, Jewelery S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
XS, S, M, L |
| Laser source | Blue + infrared |
| Accuracy | Up to 0.020 mm |
| Resolution | Up to 0.010 mm |
| Output Type | 3D mesh |
The world’s first wireless and AI-driven 3D scanner
| Scanner Type | Handheld, Wireless |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Light source | VCSEL + White LED |
| 3D Point Accuracy | Up to 0.10 mm |
| 3D Resolution | Up to 0.20 mm |
| Output Type | 3D mesh + texture |
Award-winning, light and compact metrology grade 3D scanner with an ergonomic design
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: XS: Coins, Jewelery S: Camera, Pumps M: Engines, Sculptures |
XS, S, M |
| Laser source | Blue |
| Accuracy | Up to 0.020 mm |
| Resolution | Up to 0.025 mm |
| Output Type | 3D mesh |
Intelligent fully wireless optical tracking system for precision 3D scans without targets
| Scanner Type | Wireless, Handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
S, M, L |
| Laser source | Blue |
| Accuracy | Up to 0.025 mm |
| Resolution | Up to 0.020 mm |
| Output Type | 3D mesh |
Intelligent optical tracking system for delivering ultra-high precision 3D scans without markers
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Laser source | Blue |
| Accuracy | Up to 0.025 mm |
| Resolution | Up to 0.020 mm |
| Output Type | 3D mesh |
High accuracy long-range laser 3D scanner, ideal for precise capture of large objects
| Scanner Type | Tripod mounted |
| Object Size 🛈 Typical Object Sizes: L: Small boats, Turbines XL: Warehouse, Airplane |
L, XL |
| Laser source | LiDAR |
| Angular accuracy | 18 arcseconds |
| Range | Up to 130 m |
| Output Type | 3D mesh + texture |
Optical probing system for high-accuracy and flexible measurements
| CMM Type | Wireless, handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
S, M, L |
| Volumetric Accuracy | Up to 0.049 mm |
| Measurement Distance | 10 m |
| Part Size Range | 0.1 m to 12 m |
| Output Type | 3D points |
Cutting-edge 3D scanner for capturing detailed 3D geometry and rich colors in textures
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures |
S, M |
| Laser source | Structured infrared VCSEL |
| Accuracy | Up to 0.1 mm |
| Color reproduction | 24 bit |
| Output Type | 3D mesh + texture |
Photogrammetry system tailored to deliver precise geometric measurements of large parts
| CMM Type | Optical, handheld |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Volumetric Accuracy | 0.015 mm/m |
| Depth of field | 6.5 m |
| Capture area | Up to 9.4 m x 6.9 m |
| Output Type | 3D points |
