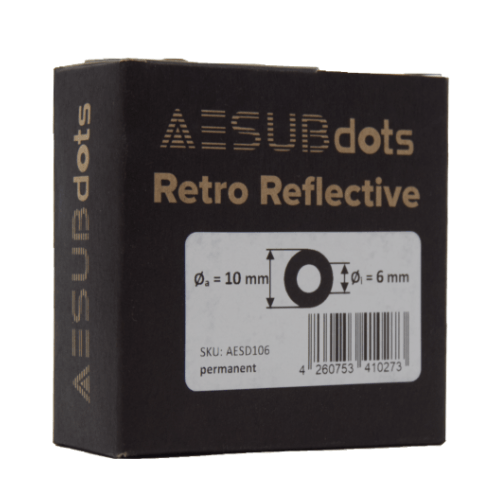

AESUBdots Retro Reflective Permanent

Reference targets ideal for use with laser scanners

AESUBdots Retro Reflective Permanent are reference targets ideal for use with laser light scanners. The targets have a unique fluorescent coating that glows white when used with laser light scanners. They serve as markers for three-dimensional objects during digitization. AESUBdots Retro Reflective Permanent are self-adhesive with a strong adhesion and adhere ideally to the vanishing scanning sprays from the AESUB product family.

AESUBdots Retro Reflective Permanent:

For use with laser light scanners

Strong adhesive effect

Unique packaging that allows for easy application of the targets

Tear perforation every 20 – 30 cm

Compatible with all AESUB sublimating sprays

Available sizes:

3 mm

6 mm

Price: $99.99 USD

Ready to buy:

Special Pricing for Wholesale Contact us >

How To Use

Aesub Blue Layer

Step 1

Open the box, and dispense out some of the roll

Aesub Blue TiO2

Step 2

Close the main flap, leaving outside the dispensed portion

Aesub Blue Time

Step 3

Fold the dispensed portion of the role over the main flap

Aesub Blue Size

Step 4

Close the secondary flap over the folded dispensed role

Aesub Blue Spray

Step 5

Gently pull the end of the roll

Aesub Blue Scan

Step 6

Now you can easily pick the dots

Aesub Blue Done

Step 7

Stick them to any surface

AESUBdots Product Family

Industry trusted reference dots

The AESUBdots product family comprises of regular Black & White reference targets and Retro Reflective reference targets compatible with the majority of 3D scanners in the market currently. The AESUBdots are uniquely packaged to allow the user to easily peel/pick the reference targets and are compatible with all AESUB sublimating scanning sprays.

Nature

Aesub_Products

AESUB Scanning Sprays Product Family

The ultimate scanning spray product family

The AESUB scanning spray product family consists of both vanishing and permanent sprays, with a range of layer thicknesses, and scanning times. The vanishing sprays also come in pigment-free white and transparent coating. Click the learn more button below to see the full product range.

AESUBframe Product Family

For reliable digitization of small to midsize parts

The AESUBframe product family consists of target frames in various sizes for scanning parts of different sizes. It is the ideal tool for rapid scanning tasks of part series. The modular, lightweight and very stiff frames enables reliable digitization of small and midsize parts.

Nature

AESUBdots Retro Reflective Permanent Specifications

Scanner Type		Laser Light
Adhesive Strength		Strong
Packaging		Roll form in custom dispensing box
Sizes		3 and 6 mm
Tear perforation		Every 20 – 30 cm (7.9 - 11.8 in.)
Adhesion to AESUB Sprays		Only AESUB sublimating sprays

Got a Question About the AESUBdots Retro Reflective Permanent?

Yes, the AESUBdots Retro Reflective Permanent reference targets will adhere to coatings from all of the AESUB sublimating (vanishing) scanning sprays. Please note, AESUBdots Retro Reflective Permanent are not compatible with AESUB White permanent scanning spray.

Yes, the AESUBdots Retro Reflective Permanent have a strong adhesive which allows them to adhere to most surface including surfaces coated in scanning sprays.

AESUBdots Retro Reflective Permanent reference targets are compatible with all types of laser light scanners, as long as the scanning software has the ability to detect them.
