STEP 1
Remove the Net from it protective bag and unfold it
STEP 2

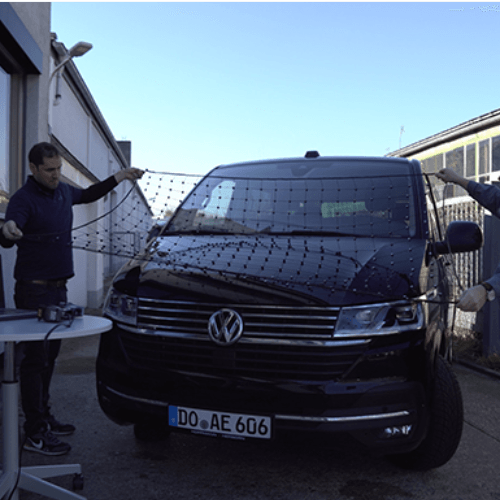

Place it on the target surface for 3D scanning
STEP 3

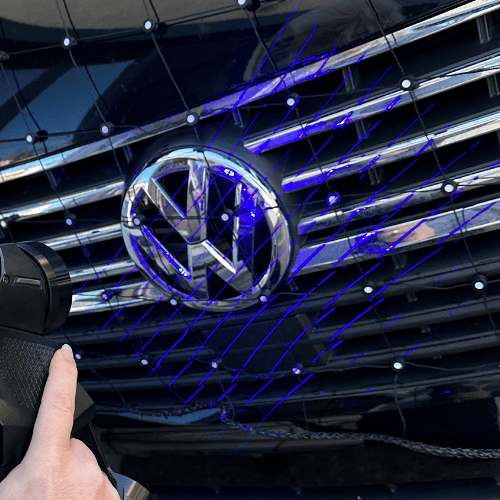

Scan the surface as you would scan normally
STEP 4
Remove the scanned Target Net in post-processing

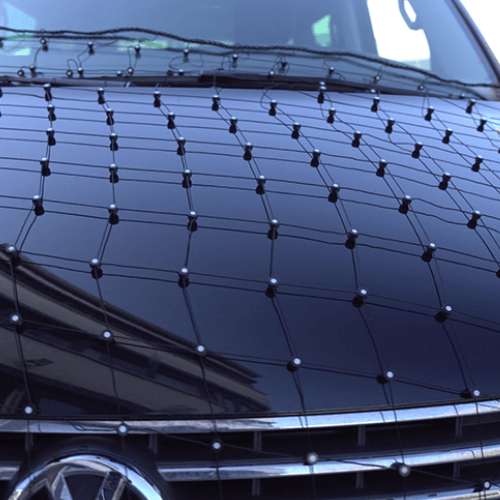

The AESUB Target Net has 300 individual dots with reference targets mounted on them on a black 1.5 x 2 m net.

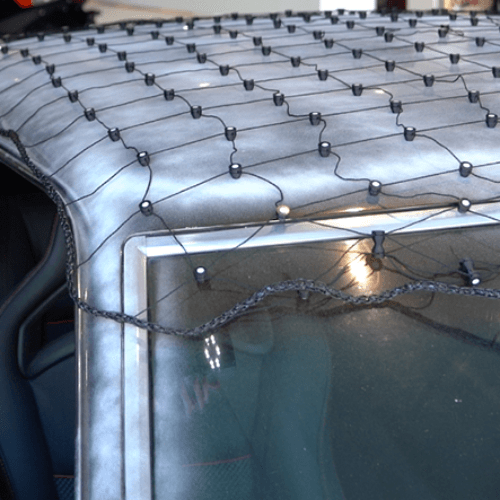

The AESUB Target Net has magnets attached to each of the individual 300 dots, allowing it to be attached to any ferromagnetic surface such as a car body, or a refrigerator door.
Yes, larger dimensions of the AESUB Traget Net can be sold upon reqeuest. Please reach out to us through our contact us form.
Metrology grade infrared + blue laser handheld scanner with built-in photogrammetry system
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: XS: Coins, Jewelery S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
XS, S, M, L |
| Laser source | Blue + infrared |
| Accuracy | Up to 0.020 mm |
| Resolution | Up to 0.010 mm |
| Output Type | 3D mesh |
The world’s first wireless and AI-driven 3D scanner
| Scanner Type | Handheld, Wireless |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Light source | VCSEL + White LED |
| 3D Point Accuracy | Up to 0.10 mm |
| 3D Resolution | Up to 0.20 mm |
| Output Type | 3D mesh + texture |
Award-winning, light and compact metrology grade 3D scanner with an ergonomic design
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: XS: Coins, Jewelery S: Camera, Pumps M: Engines, Sculptures |
XS, S, M |
| Laser source | Blue |
| Accuracy | Up to 0.020 mm |
| Resolution | Up to 0.025 mm |
| Output Type | 3D mesh |
Intelligent fully wireless optical tracking system for precision 3D scans without targets
| Scanner Type | Wireless, Handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
S, M, L |
| Laser source | Blue |
| Accuracy | Up to 0.025 mm |
| Resolution | Up to 0.020 mm |
| Output Type | 3D mesh |
Intelligent optical tracking system for delivering ultra-high precision 3D scans without markers
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Laser source | Blue |
| Accuracy | Up to 0.025 mm |
| Resolution | Up to 0.020 mm |
| Output Type | 3D mesh |
High accuracy long-range laser 3D scanner, ideal for precise capture of large objects
| Scanner Type | Tripod mounted |
| Object Size 🛈 Typical Object Sizes: L: Small boats, Turbines XL: Warehouse, Airplane |
L, XL |
| Laser source | LiDAR |
| Angular accuracy | 18 arcseconds |
| Range | Up to 130 m |
| Output Type | 3D mesh + texture |
Optical probing system for high-accuracy and flexible measurements
| CMM Type | Wireless, handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures L: Small boats, Turbines |
S, M, L |
| Volumetric Accuracy | Up to 0.049 mm |
| Measurement Distance | 10 m |
| Part Size Range | 0.1 m to 12 m |
| Output Type | 3D points |
Cutting-edge 3D scanner for capturing detailed 3D geometry and rich colors in textures
| Scanner Type | Handheld |
| Object Size 🛈 Typical Object Sizes: S: Camera, Pumps M: Engines, Sculptures |
S, M |
| Laser source | Structured infrared VCSEL |
| Accuracy | Up to 0.1 mm |
| Color reproduction | 24 bit |
| Output Type | 3D mesh + texture |
Photogrammetry system tailored to deliver precise geometric measurements of large parts
| CMM Type | Optical, handheld |
| Object Size 🛈 Typical Object Sizes: M: Engines, Sculptures L: Small boats, Turbines |
M, L |
| Volumetric Accuracy | 0.015 mm/m |
| Depth of field | 6.5 m |
| Capture area | Up to 9.4 m x 6.9 m |
| Output Type | 3D points |
